V9990 Powergraph Rev.2

Product:V9990 Powergraph rev2 (with VGA 15Khz RGB output)
System:MSX
Type:Video Cartridge
Price:See below!
Status:SOLD OUT!
Updated:NOV 21-2016


BrazilWorldwide



Taxas do Paypal incluídas



Paypal fees & Shipping not included


Shipping prediction: 12-20-2016 to 01-15-2017 (subject to change)

V9990 Powergraph by Tecnobytes Classic Computers

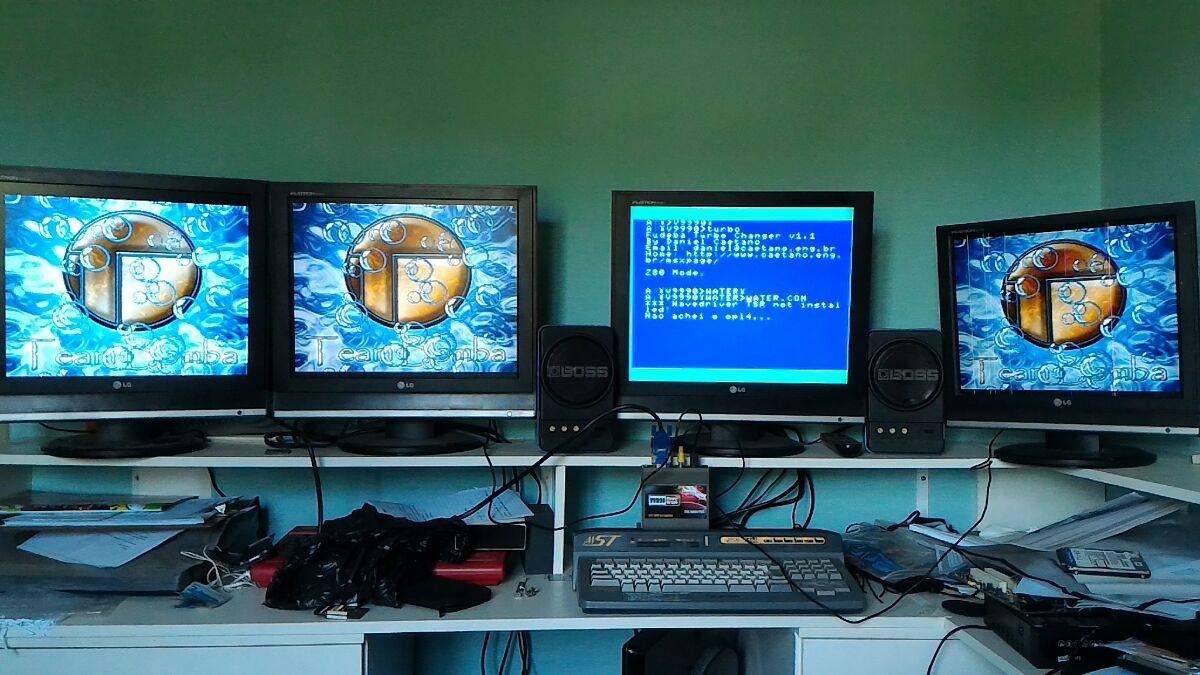

MSX & V9990 POWERGRAPH - 4 MONITORS


INTRUDER

SHOOT'N UP DEMO GAME

FLAPPY BIRD V9990 MSX VERSION

SYMBOS

GHOST'N GOBLINS

Gameboy EMULATOR

DEMOS

PERFORMANCE TESTS (POWER BASIC)

XTAZY

XTAZY

LOSABEN AKEL

TEAM BOMBA UNDERWATER DEMO



  • Composite video output (NTSC/60Hz)
  • S-VIDEO Output  (NTSC/60Hz)
  • Connector with multiple signals (RGB/15khz VGA pinout)
  • 512kb of VRAM (Dual Port Sam) extremely fast access
  • Display up to 32,768 simultaneous colors (without being " truncated " as is YJK)
  • 64 pallets of a set of 32,768 colors. The levels of R, G and B can vary from 0 to 31 ( in V9938 and V9958 these levels range from 0 to 7)
  • Interlace
  • Overscan (full screen)
  • Smooth scroll (vertically and horizontally)
  • Hardware commands faster and many advanced
  • Quick access to records and VRam (no "bottlenecks")
  • Has several screens of V9938 and V9958 (5,6,7,8,10,11 and 12), but with more pages. The Screen5, for example, has 16 pages!
  • Possibility of vertical scroll up to 16 pages and horizontal scroll up to 8 pages
  • Resolutions: 256 x 212 , 384 x 240 , 512 x 212 , 768 x 240 among other
  • The number of Sprites rises to 256 and can be displayed simultaneously on the screen up to 125 of them and up to 16 on the same line
  • The sprites are composed of 16 x 16 points and each point can have a different color (which is not possible in V9938 and V9958)
  • Graphics modes for gaming (Tiled mode):
    • P1 and P2 are two graphics modes are especially suitable for games (they are tiled 8x8 similar to screens 1 and 2)
    • P1 : It has a resolution of 256x212 with the possibility of up to 2 concurrent plans (dual plane) with scroll independently for each plan
    • The P1 mode has the same characteristics of the screen5 (256x212 with 16 colors) only "Tiled"
    • P2 is 512x212 resolution with only one plane and 16 colors, similar to screen7
Some NEW (!!!) DEMOS developed with
OLD BITS DEV STUDIO
using V9990 Powergraph and OPL4 Shockwave
Note: The MSX in video, is a MSX 1!

Any doubts? Send an e-mail to tecnobytesbrasil@gmail.com!

13 comments:

  1. Hello! Congratulations on making the V9990 it is a fantastic product! Just one question, I would like to connect to a LCD tv using the 15 pin connector but the only way I can do this is by using 3 volt battery on scart pin 16. Is there a better way? Thanks!

    ReplyDelete
    Replies
    1. Unfortunately no. The rev2 of V9990 Powergraph is ready for it. Thank you by your contact!

      Delete
  2. Interested. Please, make a new batch!!

    ReplyDelete
  3. "Codename: Intruder" From Bitvision is coming. I need V9990 to play this amazing game like other users.
    I would like to buy a v9990 powergraph from a new batch.
    Please guys, msx world need you.

    ReplyDelete
    Replies
    1. Boa noite !!
      Este produto seria um kit transformação MSX1 para MSX2+ ?

      Delete
  4. Hello
    I bought this cartridgge but when you will ship this item please ?

    ReplyDelete
    Replies
    1. Shipping prediction: 12-20-2016 to 01-15-2017

      Thank you!

      Delete
  5. Ha ainda alguma unidade para venda?

    ReplyDelete

  6. When you launch a new store to buy the V9990? Thanks!!

    ReplyDelete
  7. Also interested in new batch. Anyway to subscribe for notification when new batch is in or something?

    ReplyDelete
  8. Hi, I’m interested. Please make a new batch. Kind regards

    ReplyDelete
  9. I’m really interested, please make a new batch. Kind regards

    ReplyDelete
